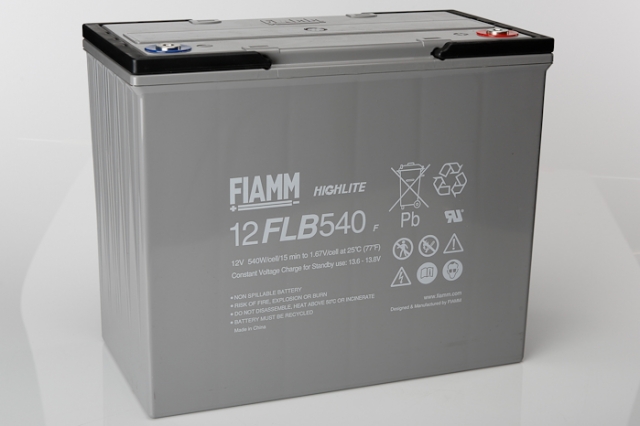

Fiamm 12FLB540P 12V 150Ah VRLA Battery

  • Product Code 12FLB540
Price On Application

The Fiamm 12FLB540 is one of the most recent introductions to the FLB catalogue of valve regulated lead acid (VRLA) standby battery options. Replacing the now discontinued 12FLB500 the 12FLB540 offers a significant increase in power rating whilst maintaining a physical size equivalent to the previous model.

Excellent build quality and reliability remain in place with the Fiamm 12FLB540 and as with all the FLB range this battery has been manufactured to the high industry standards with a strong ABS case material that boats V0 flame retardancy, corrosion resistant plates, and ‘one tool’ insert terminals as a standard feature. Choosing the 12FLB540 has proven easy for many engineers and specifiers who design and maintain critical power infrastructures that ensure power is kept online when needed most. This battery is suitable for high rate UPS, emergency lighting and a host of standby systems that provide critical protection to building services.

As an approved, trusted UK sales parter to Fiamm batteries in the UK, we at Blue Box Batteries are well placed to provide the best product support with a first time, on time, every time approach to service that our clients have come to expect and rely on. We will always ensure our most competitive pricing together and the best advice possible, call us today on 02381 789197 and find out why so many prefer to deal with Blue Box Batteries.

Enquire about this battery
RATING12V 150Ah
LENGTH338MM
WIDTH174MM
HEIGHT277.5MM
WEIGHT44.5KG
TERMINALM8/18
SPECIFICATIONFiamm FLB Range - Previous Model
SPECIFICATIONFiamm FLB Range - NEW
DATA SHEETFiamm 12FLB540P DATASHEET
ENGINEERING MANUALFiamm FLB Battery Instructions
Design Life10 year design life (Eurobat Guide - 10-12 years)
StandardIEC 60896 Part 21-22, BS6290 Part 4
Plates & GridsPlates and grids designed for optimal short rate discharges.
SeparatorsMicroporous glass mat allow recombination and fully absorb the electrolyte.
TerminalsThreaded female M5 terminals provide for high conductivity, maximum torque retention and easy installation.
Post SealsState-of-the-art post seals prevent acid seepage over a wide temperature range.
Safety ValveEach cell has its own one-way valve.
Flame Arrestor DeviceExpels excess gas while preventing any errant spark or flame from entering the battery.
Container & CoverABS flame retardant plastic in accordance with flame retardancy standard IEC 707 FV0 and UL 94 V0 (LOI greater than 28%).
Fiamm FLB Range Brochureclick here
Fiamm FLB Engineering Manualclick here
MSDS (Material Safety Data Sheet)click here
Constant Power Discharge 20°Cclick here
Constant Power Discharge 25°Cclick here
Constant Current Discharge 20°Cclick here
Constant Current Discharge 25°Cclick here

Questions & Answers

  • Are interlinks supplied? Standard interlinks and terminal covers are supplied free of charge upon request, when accompanied with a battery order. Links are flat type as shown in the image above, which keeps the height of the battery system to a minimum. Should you have a specific layout requirement please let us know and we will provide the correctly sized links to meet with your requirement.
